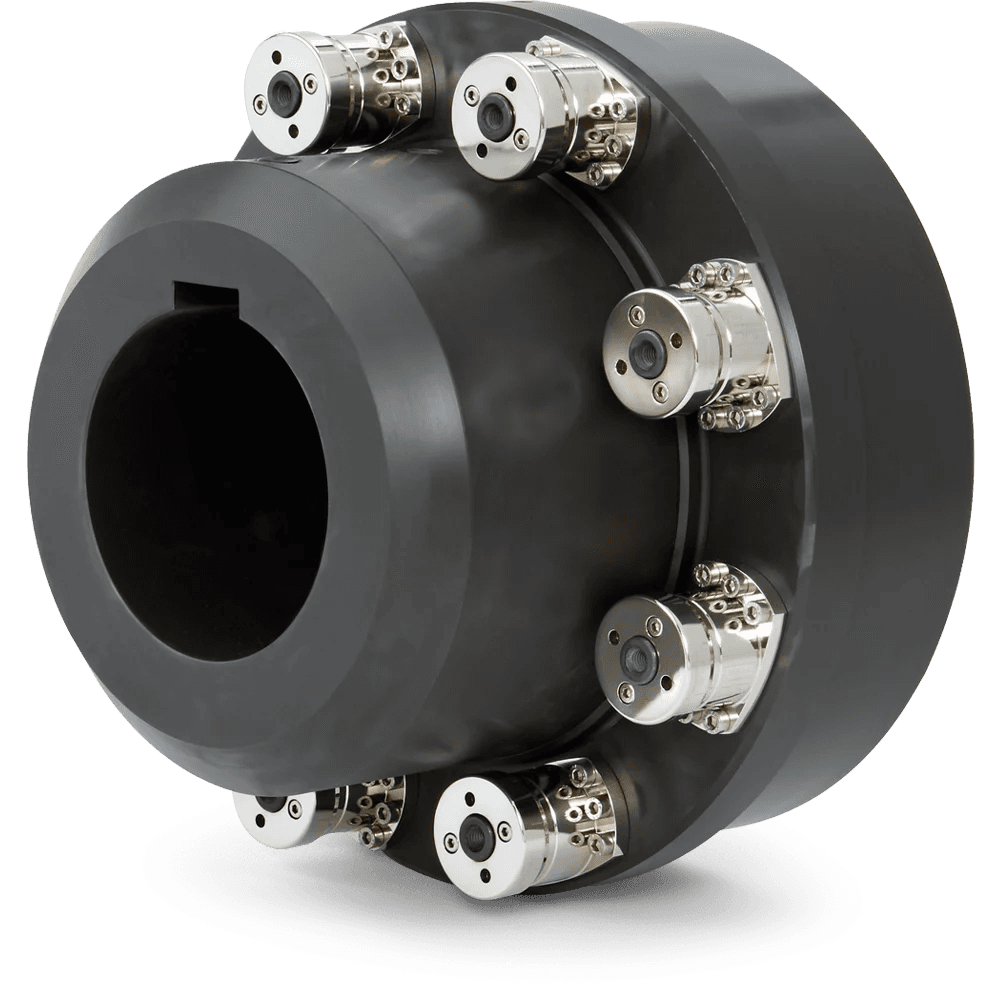

Jaw Couplings (L Series)
Three-piece couplings with replaceable spider elements for general motor and pump connections.
Shaft Couplings & Bushes Supplier UAE | Jaw, Flexible & Taper Lock
Jaw, flexible, and grid couplings plus taper lock bushes for UAE factories. Contact us with bore sizes and keyway for a quote.
One accountable partnerUAE executionInternational manufacturing reach
Shaft Couplings & Bushes Range
Types of shaft couplings & bushes we supply
Each type below covers a different application — browse the range, then send the specs listed in the quote guide.
HRC Flexible Couplingspublic/images/products/shaft-couplings-bushes/type-2.png
HRC Flexible Couplings
Compact couplings with rubber elements for moderate misalignment and vibration damping.
Grid & Rigid Couplingspublic/images/products/shaft-couplings-bushes/type-3.png
Grid & Rigid Couplings
Higher torque couplings for applications requiring torsional stiffness or minimal backlash.
Taper Lock Bushespublic/images/products/shaft-couplings-bushes/type-4.png
Taper Lock Bushes
Standard taper bushes for mounting pulleys, sprockets, and couplings to shafts.
Keys & Locking Elementspublic/images/products/shaft-couplings-bushes/type-5.png
Keys & Locking Elements
Parallel keys, Woodruff keys, and shaft locking components for hub retention.
Coupling Spares & Elementspublic/images/products/shaft-couplings-bushes/type-6.png
Coupling Spares & Elements
Replacement spiders, grids, and rubber elements for existing coupling maintenance.
Quote Faster
What we need to quote your shaft couplings & bushes order
Follow this flow to send complete specifications — fewer back-and-forth messages, faster quotes.
1
Choose product type
Pick the type that matches your application from the range above.
2
Gather specifications
Confirm dimensions, standards, brand preference, and quantity.
3
Send your enquiry
Share details via our quote form or WhatsApp — photos and part numbers help.
4
Receive your quote
We verify specs and respond on business days, usually same day.
What to include
Details we need for a fast shaft couplings & bushes quote
- Item type (coupling / bush / key / locking element)
- Bore sizes and keyway dimensions (both sides for couplings)
- Coupling type or taper lock series if known
- Torque, RPM, and misalignment if known
- Qty + application
Example enquiries
Jaw coupling, 25 mm bore both sides, L090 seriesTaper lock bush 2012, 50 mm bore with 14 mm keywayFlexible coupling, 30 mm to 20 mm bore, with keywayHRC 110, 28 mm bore, replacement rubber elementBy product type
Key specs to confirm per type
Jaw Couplings (L Series)
- L070–L225 series
- NBR/PU spider elements
HRC Flexible Couplings
- HRC 70–280 series
- Cast iron hubs
Grid & Rigid Couplings
- Grid 1020–1200 series
- Flanged rigid types
Taper Lock Bushes
- Series 1008–5050
- ISO taper standards
Keys & Locking Elements
- DIN 6885
- ISO 3912
- Woodruff keys
Coupling Spares & Elements
- Match to existing coupling series
Shaft Couplings & Bushes Types
Shaft Couplings & Bushes for UAE factories
Jaw Couplings (L Series)
Three-piece couplings with replaceable spider elements for general motor and pump connections.
HRC Flexible Couplings
Compact couplings with rubber elements for moderate misalignment and vibration damping.
Grid & Rigid Couplings
Higher torque couplings for applications requiring torsional stiffness or minimal backlash.
Taper Lock Bushes
Standard taper bushes for mounting pulleys, sprockets, and couplings to shafts.
Keys & Locking Elements
Parallel keys, Woodruff keys, and shaft locking components for hub retention.
Coupling Spares & Elements
Replacement spiders, grids, and rubber elements for existing coupling maintenance.
Brands
Brands & series we source
Lovejoy / Ruland equivalents
Jaw and flexible couplings for motor-pump and gearbox connections.
SIT / Browning taper lock
Standard taper bushes for pulleys, sprockets, and couplings.
Grid and rigid couplings
Higher torque drives requiring minimal backlash or rigid connection.
Catalogue
Shaft Couplings & Bushes — standard configurations
Common coupling and taper lock configurations. Contact us with bore sizes and series for a quote.
Jaw Couplings
L series jaw couplings with standard bore sizes.
| Designation | Profile | Pitch / OD | Grooves / Strands | Bush / max bore | Enquire |
|---|---|---|---|---|---|
| L070 / 10 mm | Jaw coupling L series | 10 mm bore both sides | 1 | NBR spider included | |
| L090 / 19 mm | Jaw coupling L series | 19 mm bore both sides | 1 | NBR spider included | |
| L095 / 24 mm | Jaw coupling L series | 24 mm bore both sides | 1 | NBR spider included | |
| L100 / 28 mm | Jaw coupling L series | 28 mm bore both sides | 1 | NBR spider included | |
| L110 / 38 mm | Jaw coupling L series | 38 mm bore both sides | 1 | NBR spider included |
Taper Lock Bushes
Standard taper lock bushes from 1008 to 3020 series.
| Designation | Profile | Pitch / OD | Grooves / Strands | Bush / max bore | Enquire |
|---|---|---|---|---|---|
| 1008 / 14 mm | Taper lock bush | 14 mm bore | — | 8 mm × 7 mm keyway | |
| 1210 / 25 mm | Taper lock bush | 25 mm bore | — | 8 mm × 7 mm keyway | |
| 1610 / 42 mm | Taper lock bush | 42 mm bore | — | 10 mm × 8 mm keyway | |
| 2012 / 50 mm | Taper lock bush | 50 mm bore | — | 14 mm × 9 mm keyway | |
| 2517 / 60 mm | Taper lock bush | 60 mm bore | — | 16 mm × 10 mm keyway | |
| 3020 / 75 mm | Taper lock bush | 75 mm bore | — | 20 mm × 12 mm keyway |
Flexible & Grid Couplings
HRC and grid coupling sizes for industrial drives.
| Designation | Profile | Pitch / OD | Grooves / Strands | Bush / max bore | Enquire |
|---|---|---|---|---|---|
| HRC 90 / 24 mm | HRC flexible coupling | 24 mm bore both sides | 1 | Rubber element | |
| HRC 110 / 28 mm | HRC flexible coupling | 28 mm bore both sides | 1 | Rubber element | |
| HRC 130 / 38 mm | HRC flexible coupling | 38 mm bore both sides | 1 | Rubber element | |
| Grid coupling 1020 | Grid coupling | 25 mm bore | 1 | Spring grid element |
Live stock confirmation is always required before order. Share designation, quantity, and application for the fastest specification check.
Specifications
Technical specifications
| Parameter | Options / Notes |
|---|---|
| Coupling types | Jaw (L series), HRC flexible, grid, rigid, disc |
| Bush series | 1008, 1108, 1210, 1610, 2012, 2517, 3020, 3030, 3535, 4040, 4545, 5050 |
| Bore range | 6 mm – 125 mm+ (varies by series) |
| Materials | Cast iron, steel, aluminum hubs; NBR/PU/rubber elements |
| Keyways | Standard DIN keyways; custom on request |
Guides
Sizing references
Jaw vs Flexible Coupling Selection
Choose based on torque, misalignment, and vibration damping requirements.
Read guide →Taper Lock Bush Size Chart
Match taper sizes to shaft diameters and hub series.
Read guide →Keyway Dimensions & Key Selection
Confirm key width, height, and length for shaft and hub fit.
Read guide →
Why Sidrat
Shaft Couplings & Bushes supply for UAE factories
- Couplings and taper lock bushes for UAE plant maintenance.
- Keys and locking elements supplied with matching specs.
- Replacement elements sourced by coupling series.
- Contact us for any bore or series not listed.
Shaft Couplings & Bushes factory supply UAEpublic/images/products/shaft-couplings-bushes/application.png
Need shaft couplings & bushes for your factory?
Contact us with part details — listed or not. Same-day response on business days.
